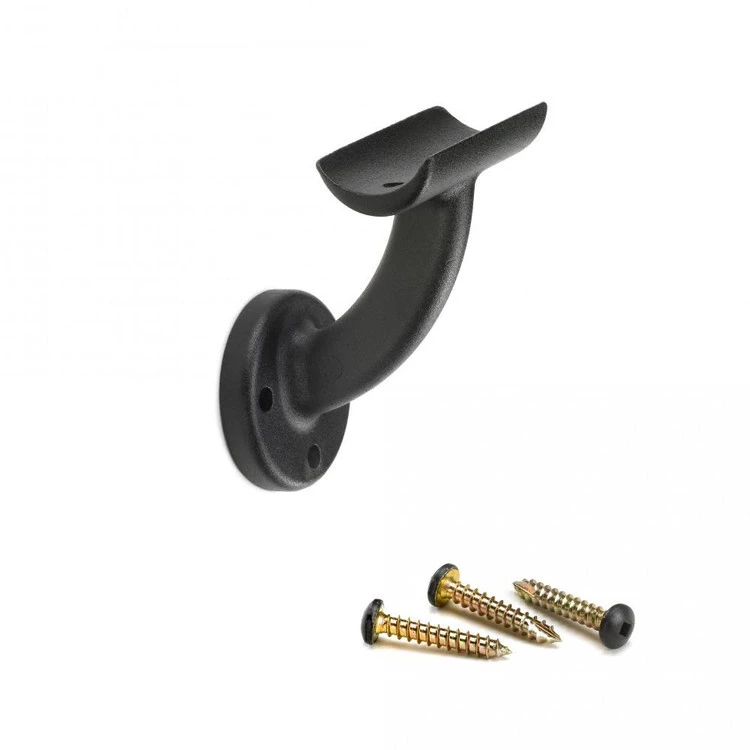

Trex ADA Handrail Wall Mount

Original price was: $40.99.Current price is: $28.69.

ADA Compliant
Works well with Trex Transcend, Signature (formerly Reveal), and Select Railing Systems
Made with heavy duty aluminum
Finish resists fading, chipping, and corrosion
A wall mount must be used at each seam of rail to rail connections
Collar ring can be used to hide seam
Distance from wall to center of rail is 2-1/8″
Note: The maximum recommended span between supports is 6′ on center. Thus placement of posts is critical when installation of railing is being considered.
Trex is doing a rolling change on this product. The original version includes non-recessed screw holes and provides only screws for aluminum installation. The second generation features recessed screw holes and includes both the fasteners for wood and aluminum installation. Please contact us if your railing system requires a specific ADA handrail model. If not, we will ship the component that is currently available.

SKU: ZGL5A 1698635309 Categories: Deck Products, Railing Systems Tag: Trex

Your needs, our top priority.
Online assistance, always at your service.
Prompt service, every time.
Protect Your Wallet with Safe Payments

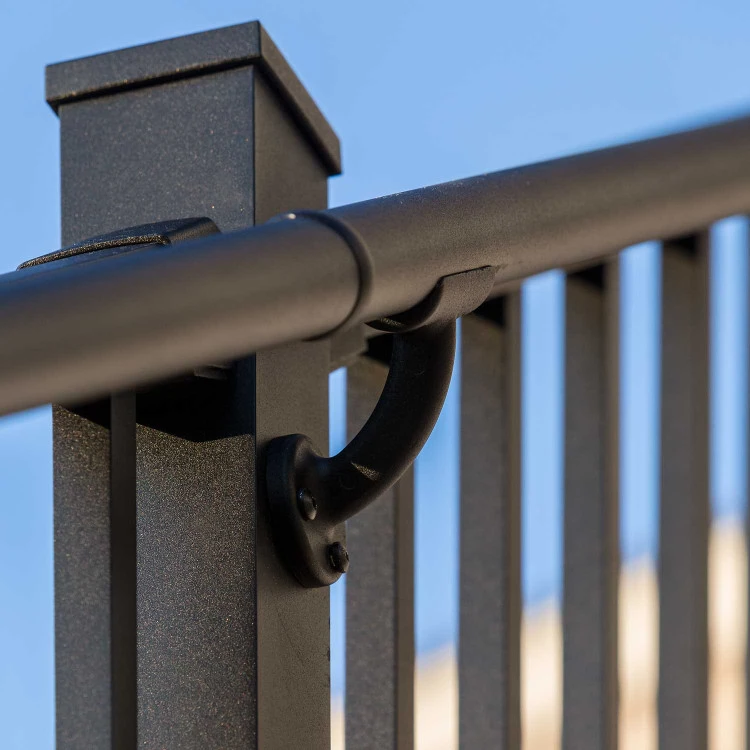

The ADA Handrail Wall Mount must be used at each seam where the ADA Handrails connect to support the connection. Each seam must be as close to the center of the wall mount as possible. If a collar is being used, this can be offset slightly to allow for the collar to fit. The distance from the wall to the center of the rail is 2-1/8″.

Made with a high-quality powder-coated finish that is AAMA-2604 compliant, the components resist fading, chipping and corrosion. Wall mounts and wall returns include fasteners for both wood post and aluminum post installations. Aluminum collars hide railing seams for a smooth transition between components, and aluminum cap ends conceal open rail ends.

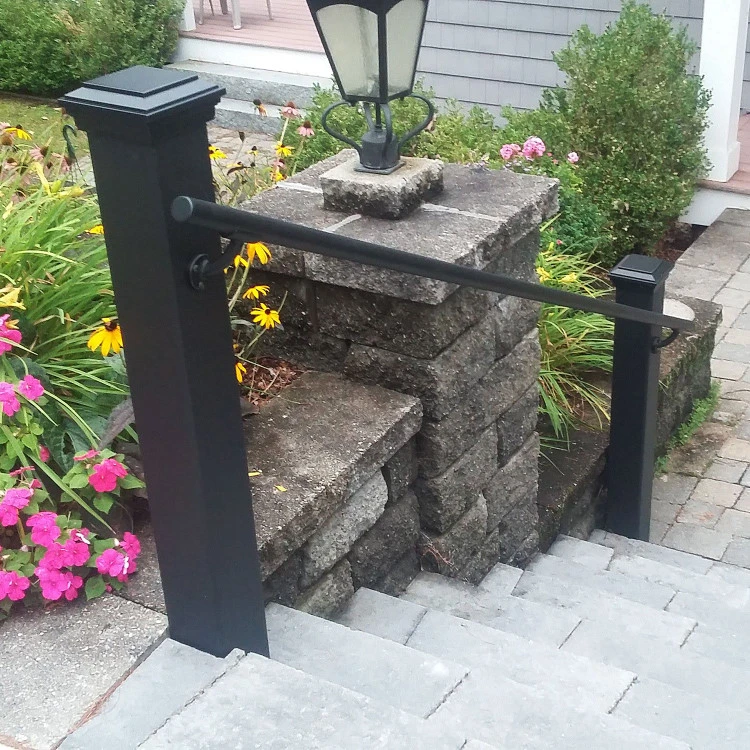

The Trex ADA-Compliant Handrail system is designed to seamlessly blend with all Trex railing options, offering an extra level of safety, strength and accessibility for any deck design. Available in a variety of colors, this heavy-duty aluminum system features a full complement of components to accommodate easy installation.
